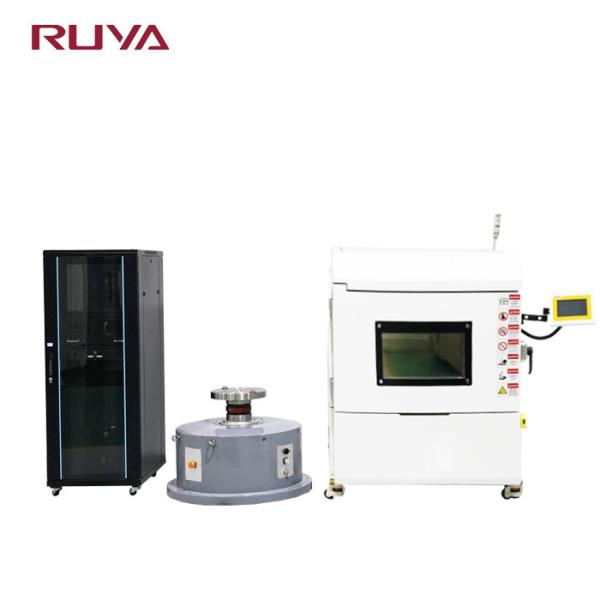

DTC014 Single Axis MEMS Gyroscope Test Turntable With Thermal Chamber

Name: DTC014 Single Axis MEMS Gyroscope Test Turntable With Thermal Chamber
Brand: RUYA
Price: 1 USD

Quality DTC014 Single Axis MEMS Gyroscope Test Turntable With Thermal Chamber for sale

Brand Name : RUYA

Model Number : DTC014

Certification : ISO 9001

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T

Supply Ability : ≤3 sets，4 months

Delivery Time : 3-4 months

Packaging Details : wooden box

Table Diameter : Ф 350mm

Countertop Material : stainless steel

Flatness : better than 0.02 mm

End Face Runout : ≤ 0.02 mm

Rate Range : ± 0.001 °/ s to ± 3000 °/s

Rate Resolution : better than 0.0001 ° / s

Load Weight : ≥ 20 kg

User Conductive Slip Ring : 32 rings, 3 A

Contact Now

DTC014 Single Axis MEMS Gyroscope Test Turntable With Thermal Chamber

Product Overview

The single-axis temperature control turntable is a high-precision device dedicated to the temperature characteristic test and compensation of MEMS gyroscopes. It can accurately control the temperature in a wide temperature range and perform rotation tests simultaneously to comprehensively evaluate the temperature sensitivity and compensation effect of the gyroscope.

Through precise temperature-motion coupling tests, the device provides reliable data support for the temperature compensation and performance optimization of MEMS gyroscopes, significantly improving the stability of the gyroscope in the full temperature range.

Technical Specifications

Specification	Value
Table Diameter	Ф 350mm
Countertop Material	Stainless steel
Flatness	Better than 0.02 mm
End Face Runout	≤ 0.02 mm
Rotation Range	Continuous rotation
Rate Range	± 0.001 °/s to ± 3000 °/s
Rate Resolution	Better than 0.0001 °/s
Maximum Angular Acceleration	40000 °/s²
Angular Position Accuracy	± 3 ″
Angular Position Resolution	0.0001°
Angular Position Repeatability	±2″
Load Weight	≥ 20 kg
User Conductive Slip Ring	32 rings, 3 A
